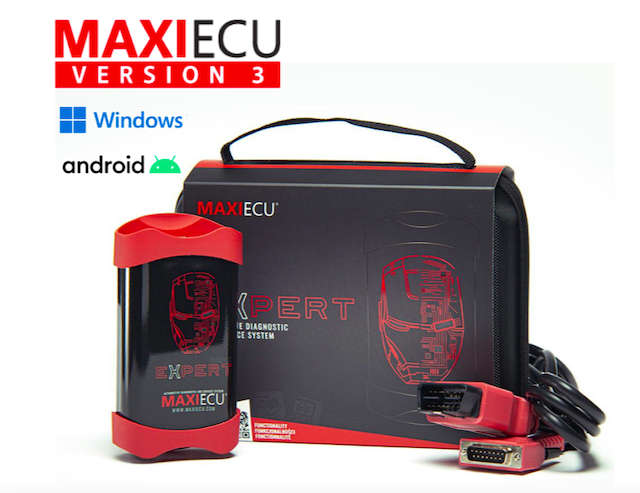

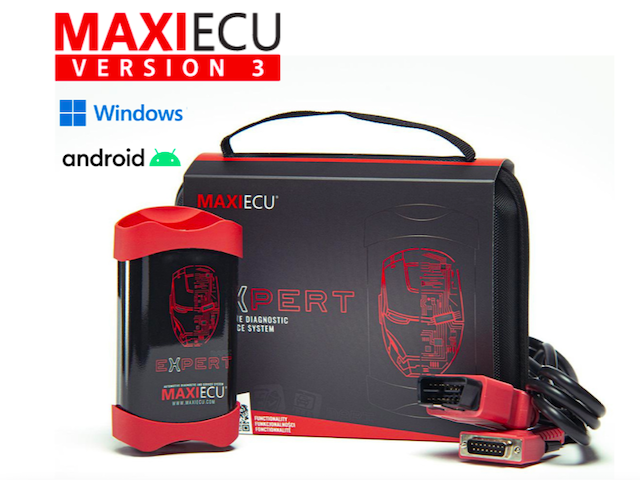

Compact advanced technology Expert edition interface

A reliable tool for car owners and professionals:

The price of the set includes licenses for 1 selected brand (you will choose the brand when activating the account). If you want, you can also choose a set with more brands right away or buy new brands later.

Modular software:


Thanks to the modularity of the MaxiEcu 3 software (Windows and Android) The license for the software is not time-limited - you have access to all the functionalities indicated in the FUNCTIONALITIES tab. The hardware key is the interface, not the computer workstations - so you can install the software on even several computers/laptops.

Advanced diagnostic functions:

MaxiEcu 3 provides also access to advanced capabilities.

• Service diagnostics, including: DPF regeneration, brake caliper retraction, ABS, AirBag, AT, ESP, Immo, UPS , BCM and many more.
• Thanks to this MaxiEcu is a tool dedicated both as support for professional workshops and for private use.

Your online user account:

After the purchase, register your interface via the MY ACCOUNT button on the website www.maxiecu.com. By registering the device, you also gain access to the User account from which you can obtain professional technical support of using MaxiEcu 3. You also get access to the latest software versions.

Diagnostic Trouble Codes Display:

This function allows you to read faults codes stored by the vehicle’s electronic systems. The codes displayed by MaxiEcu include description, so there is no need to have professional knowledge to interpret them. Before erasing, you can also save the faults in the diagnostic report in .pdf format, thanks to which you will gain an overview of the fault history.

Live Datastream:


This option in MaxiEcu allows you to view many parameters in real time. At the same time, you can observe all parameters, obtaining their detailed values. Without additional tools or a need to open the bonnet. The obtained parameter values are presented in a clear and comprehensible way. The data can also be automatically saved to a report that you can read in a spreadsheet.

Graph data:


Graphs give us enable to make a visualization of the working of many parameters. Graphical presentation of the value is especially beneficial if you want to verify signals changing at a high frequency. Analysis as a graph is also possible while driving the vehicle, so you have the opportunity to directly observe the operation of selected parameters. Graphs have also undoubted advantage, that thanks to them, checking the correct operation of the subassembly becomes simple and clear.

Component Activation:


The basic and inseparable function during cars diagnostics. Thanks to which you can check whether a given component is working properly. The MaxiEcu software, using Tests, enables elements to be activated and checked – even if the controller doesn’t meet the conditions for the component to be switched on. The software forces switching on of a given component and thanks to this you can, for example, check the operation of the radiator fan even on a cold engine.

System Requirements:

• Windows: Windows 11, Windows 10 64 bit system
• Android :  Android 8.0 or later

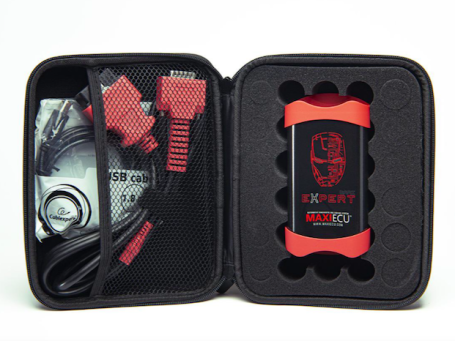

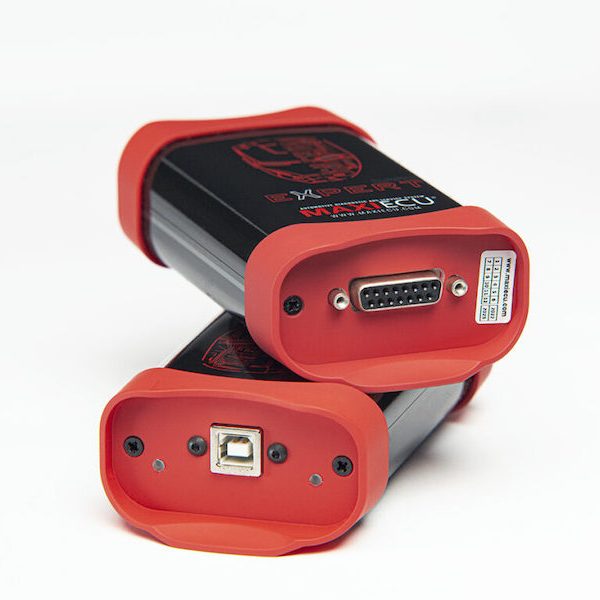

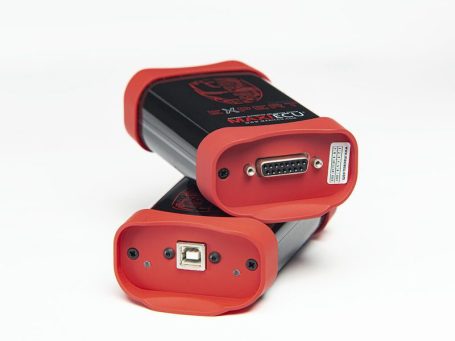

The Maxiecu Expert Diagnostic system is based on the latest Expert edition Interface, with its built in multiplexed capabilities and advanced features and functions this Rugged workshop proof interface which has 24 volt capability, USB connection as well as extended Wifi and Bluetooth connection options built in, and can communicate with all modules to a level far beyond standard ELM based interfaces.

It is also firmware updateable with updates released with new versions of the Maxiecu software.

Its all about the Coverage

Having the latest technology without the coverage is not good so Maxiecu have concentrated on the features of the software as well, the coverage on all models is good and would be close to dealer level on some models with injector coding and programming available on some modules, DPF Regeneration, Delete adaptions Sensor initialisation and component activations.
